Cost-optimized, wired

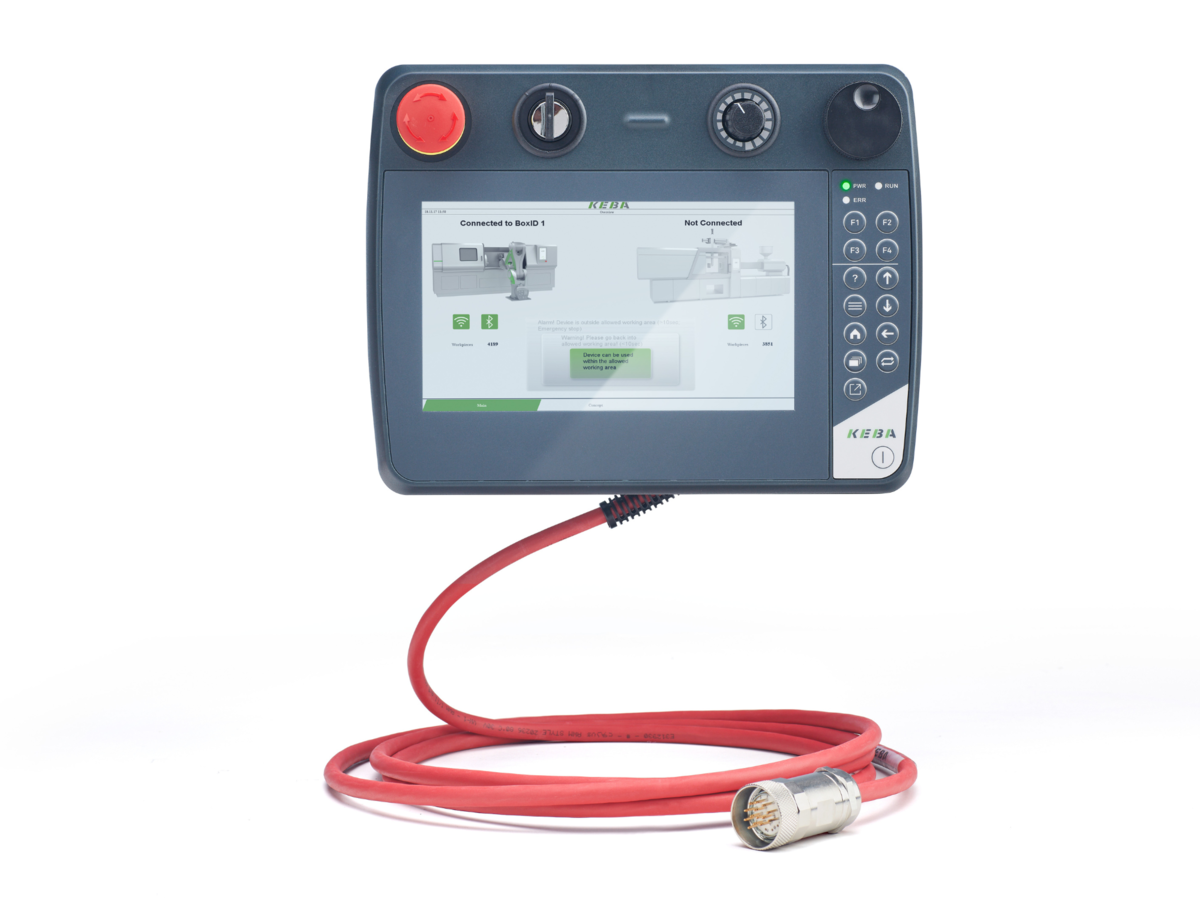

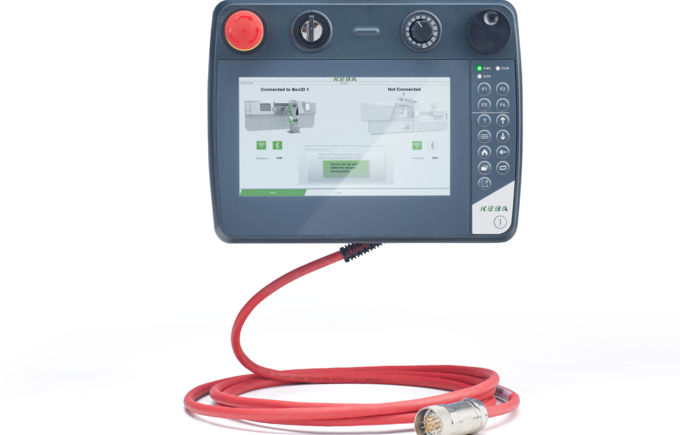

KEBA KeTop HMI T135

The KeTop T135 with 7" multi-touch screen can be used for all modern visualization tasks thanks to its browser and communicates with any control system via an Ethernet connection. It impresses with its excellent ergonomics, compact design, and light weight. A highlight are the buttons on the rear, which allow practical one-handed operation.

WinCC Unified is the latest visualization platform from Siemens and works seamlessly on the T135, while Siemens does not offer its own compatible mobile HMI. So why wait for Siemens when the T135 is the perfect alternative!

The KeTop T135 can be equipped with up to three operating elements such as handwheels, joysticks, or selector switches. The wide range of optional operating elements allows for a variety of configuration options.

T135 with 7" PCT multi-touch screen
T135 ECO with 7" analog resistive touchscreen
Compact, ergonomic, and lightweight (approx. 850 g)
WinCC Unified compatible
Optimized for web visualizations (browser, VNC)
Open for many controllers (OPC UA, Modbus TCP, S7 driver, ADS)
Buttons on the back of the handle enable one-handed operation
Extensive selection of operating elements: buttons, handwheels, joystick, selector switch, etc.
Optional safety functions: 3-stage enable button, emergency stop (EN ISO 13850)
Protection class IP54, operation with 24 V DC
Accessories: wall bracket, magnetic bracket, hand strap

Request

Features

Browser-based web visualization
Optimized for web visualizations thanks to integrated browser
WinCC Unified compatible

7“ multitouch screen T135
Projected capacitive multitouch with LED backlighting (1024×600 px)

7” resistive screen T135 ECO
Analog resistive touchscreen (1024×600 px)

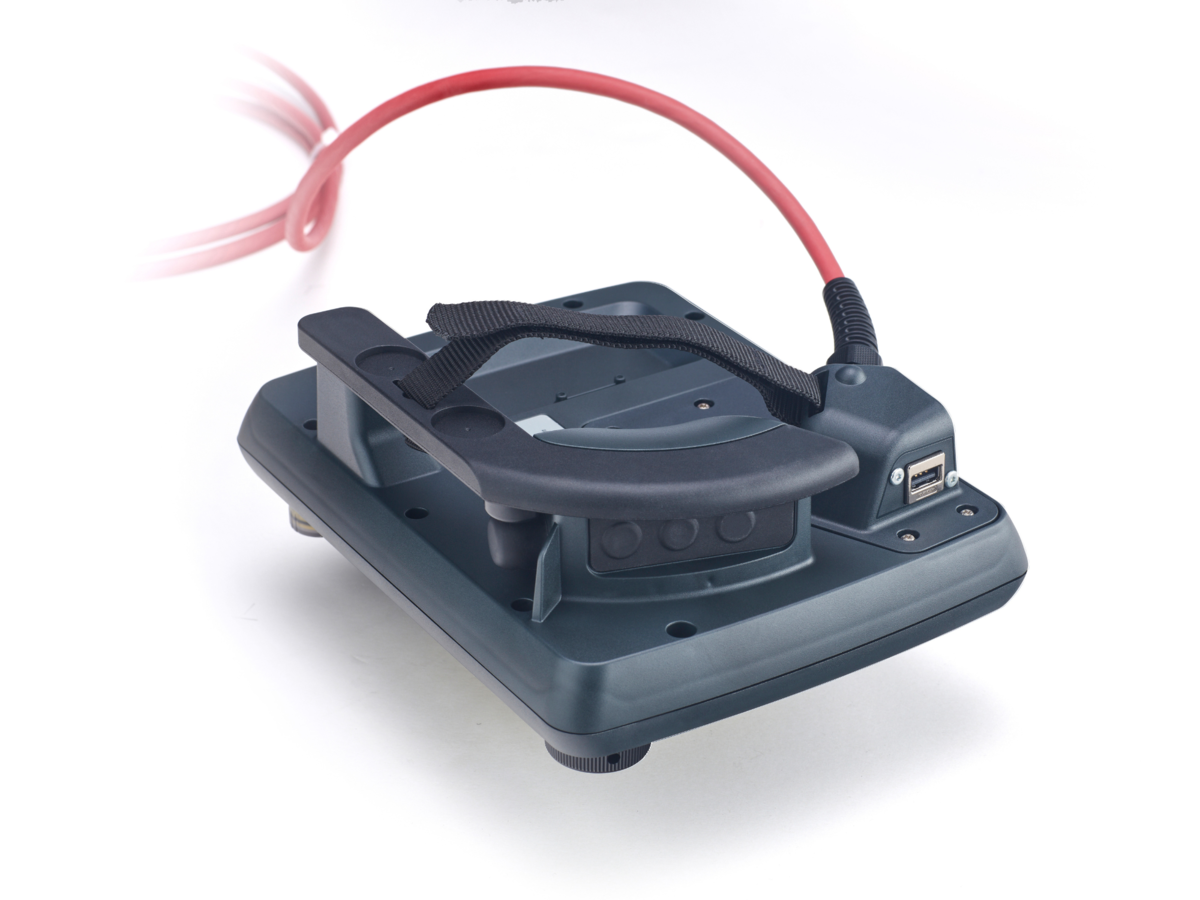

Rear keyboard for one-handed operation
Conveniently located buttons on the rear for one-handed operation

Ergonomic, compact, and lightweight
Compact housing, only approx. 850 g

Open for many controllers
Visualization via browser, VNC, and native applications; communication via OPC UA, Modbus TCP, S7 driver, ADS

Flexible control element options
Up to 3 optional elements: buttons, selector switch, handwheel, joystick, override potentiometer, etc.

Optionally integrable safety functions
Emergency stop (2-channel, optionally illuminated), 3-stage enabling button according to EN 60947-5-8

Robust housing with IP54 protection
Material PPE/PS, 24 V DC power supply

Operating system: Linux
Compact architecture for industrial applications.
